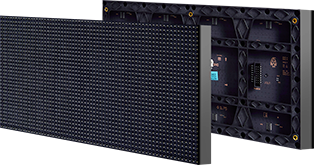

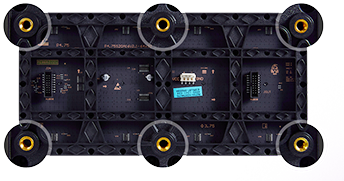

LED户外全彩显示屏单元板 室外PH8

室外PH8
点间距
Pixel Pitch
8mm 每平方米像素密度
Density/㎡
15625 输入电压
Input Voltage
AC220V
模组分辨率
Moudule Resolution
32*16 平均功耗
Average Power Consumption
400W/㎡ 工作温度
WorkingTemperature
10%-90%RH
模组像素点
Moudule Pixel
512 最大功耗
Maximum Power Consumption
1200W/㎡ 最佳视距
Best Viewing Distance
≥8M
模组尺寸
Moudule Size
256mm*128mm 输入功率
Input Power
800W/㎡ 整屏视角.
Whole Screen Viewing Angle
H:160°V:160°
灯珠
LED Lamp
SMD3535 亮度
Brightness
≥5500cd/㎡ 防护等级
Protection Level
IP65/IP54
驱动IC
Driving IC
JXI5020 灰度
Gray
14(bit) 使用寿命
Using Life
10万小时
驱动方式
Driving Mode
4扫 颜色深度
Color Depth
65536 换帧频率
Frame Frequency
60HZ
应用环境
Application Evironment
户外 刷新率
Refresh Rate
1200HZ 屏体重量
Screen Body Weighr
约40kg/㎡
模组重量
Module Weight
0.55KG
